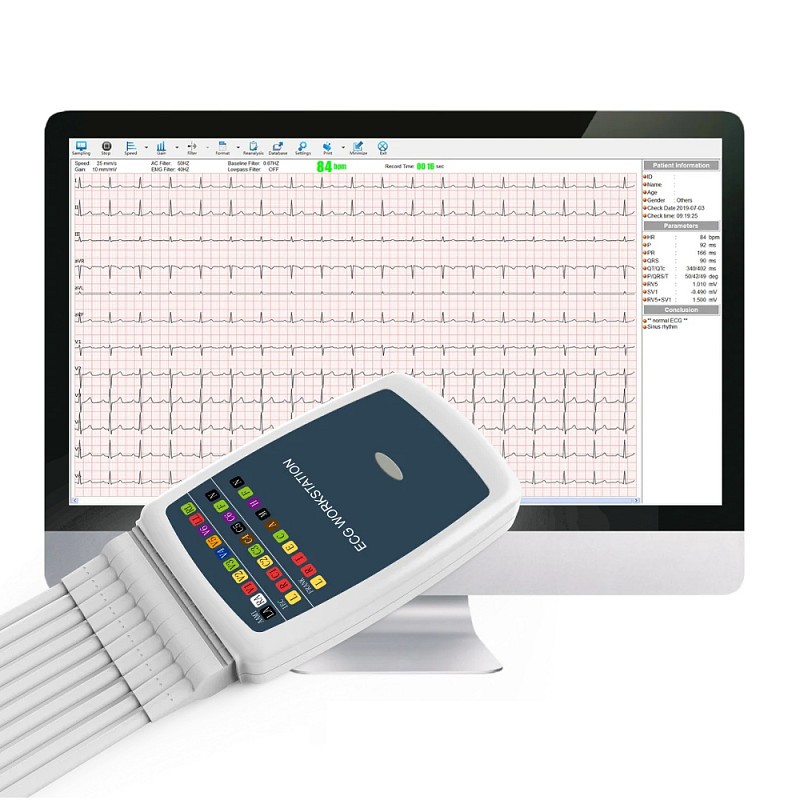

CONTEC 8000 WIRELESS ECG WORKSTATION
Compact and portable device with advanced ECG analysis algorithm that reliably detects arrhythmias.

The high sampling frequency (1000Hz) guarantees the correctness of the trace, visualization and printing at high frequency.

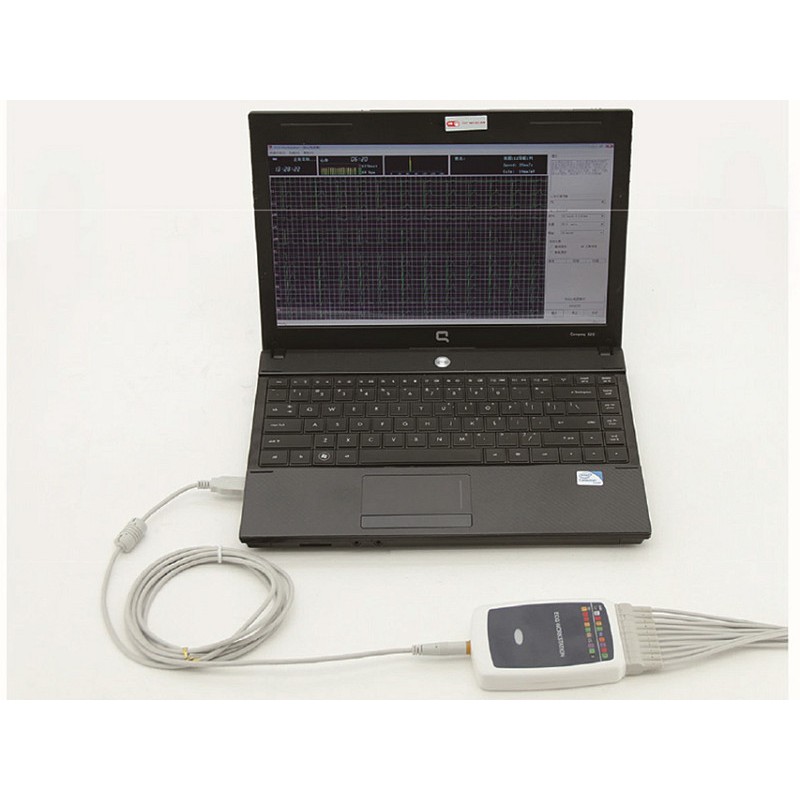

Includes wireless data transmission to PC to help you analyze, manage and store patient reports.

Multiple functions, including: 12-lead ECG, rate cardiogram, high-frequency ECG, QT internal dispersion analysis, heart rate variability analysis, ECG pacing analysis, myocardial ischemia analysis, heart rate turbulence analysis, vectorcardiogram, timed vectorcardiogram and potential analysis late ventricular.

Built-in rechargeable lithium battery, continuous operation for over 7h.

- Leads: 12 standard leads
- Input mode: protection against fluctuations and defibrillation
- CMRR: >60dB, >100dB (add filter)
- Time constant: = 3.2s
- Patient leakage current: - Calibration voltage: 1mV
- Sampling: frequency: up to 1000Hz
- Accuracy: up to 24 bits
- Input circuit current: = 50nA
- Input impedance: = 50MO
- Noise level: = 15µVp-p
- Frequency Response: 0.05~150Hz (-3 ~ +0.4dB)
- Bias voltage: ± 500mV
- Print format: A4, B5
- Report format: BMP, PNG, PDF, JPG
- Operating system: Windows 2000 / XP / Vista / 7 / 10 / 11

- 1 ECG lead cable
- 6 precordial electrodes
- 2 extension cables (for electrodes)
- 4 limb clamp electrodes
- 1 software on CD
- 2 branch cable clamps
- 1 user manual for ECG workstation installation: GB, IT
