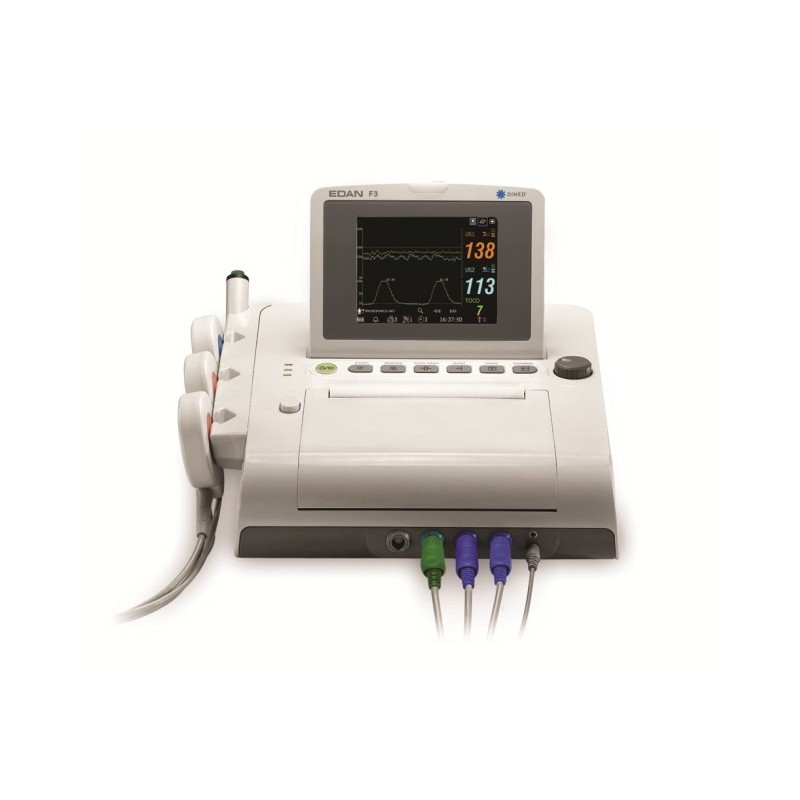

Lightweight, portable and extremely compact. Lithium battery (OPTIONAL). Large 5.6" LCD display, foldable. Advanced FHR functions, verification of overlapping signals to differentiate FHR of twins (only for LTD556-566), quality indicator of FHR signals to optimize the position of the probe. Basic functions of FHR, TOCO and automatic fetal movement recognition. Integrated printer. 12 hours of memory. Easy to use thanks to the PC software included in the package. Integrated USB port.

LTD566 -> Twin

Accessories supplied


- 1 FHR Probe (2 pcs for LTD566)


- 1 TOCO probe


- 1 Event Marker


- 2 Belts (3 pcs for LTD566)


- 1 Ultrasound Gel (CE Mark, 250g)


- 3 Replacement Paper (100mm×150mm×150p, International Standard, per piece)


- 2 T2.0AH fuses


- 1 Power cable (European Standard)


- 1 Ethernet cable


- 1 connection cable


- 1 RS323 to USB adapter and Driver CD


- 1 Software (CD)


- 1 Screwdriver

Technical features

Display specifications


Display: 5.6” LCD


Resolution: 640 x 480 RGB


Ultrasound


Technique: Pulse repetition frequency with autocorrelation


Pulse repetition rate: 2 kHz


Ultrasonic frequency: (1.0 ±10%) MHz


FHR measurement range: 50 bpm~240 bpm


Resolution: 1 bpm


Accuracy: ±2 bpm


/ob:


TOCO


TOCO Range: 0%~100%


Nonlinear error: ≤10%


Resolution: 1%


Zero mode: Automatic/Manual


AFM


Technique: Pulsed doppler ultrasound


Range: 0~100(%)


Resolution: 1%


Manual Fetal Movement


Method: Remote indicator

Registration


Recording paper: Z-fold, 150/152 mm heat-sensitive paper


Recording speed: 1/2/3 cm/min, 15mm/sec for historical data


Diet


Operating voltage: 100-240V~


Operating frequency: 50/60Hz


Battery: 14.8 VB Li-ion rechargeable

Dimensions: L:35 D:30 H:10.4 cm


Weight: 3.5kg
