- 7” TFT LCD touch screen
- Simultaneous display of 12 leads
- Digital isolation and signal processing technology, digital filter
- Patient management, name, age and id, detailed analysis report
- Built-in rechargeable lithium battery
- The thermal printing system allows 10 printing modes
- Can print for 90 minutes up to 150 prints
- ECG software - Sync, USB connection to PC, 1000 exam memory
- Self measurement, self analysis, self interpretation
- Internal software: GB, FR, IT, ES, DE, TR, PL, PT, SI, RU, KZ, CN.
- Synchronous ECG PC software: GB, IT, FR, DE, PL, SK, TR.
- Manual: GB, IT FR.

USB connection allows real-time transmission to PC, data analysis and diagnosis, print management via PC

Technical features:
ECG
- Type of safety: Class I, applied parts type CF (applied parts with defibrillation protection)
- Leads: 12 standard
- Input: floating input circuit and defibrillation protection
- Patient leakage current: - Sampling frequency: 1000Hz
- A/D conversion: 12bit
- Response frequency: 0.05Hz~150Hz (-3dB, +0.4dB)
- Time constant: >3.2s
- CMRR: >60dB, >100dB (add filter)
- Bias voltage: ±500mV
- Sound level:
Filters
- Interference filter: 25Hz/35Hz (-3dB)
- AC filter: 50Hz/60Hz (-20dB)

Waveform
- Registration mode: Thermal printer thermal printer (32 dots/mm)
- Paper type: 50mm × 20m 80mm × 20m 110mm × 20m
- Sensitivity: 5, 10, 20 mm/mV 2.5, 5, 10, 20, 40 mm/mV
- Printing speed:
- Automatic recording: 25mm/s, 50mm/s
- Rhythm recording: 25 mm/s, 50 mm/s
- Manual recording: 5, 6.25, 10, 12.5, 25, 50, 100 mm/s

Diet
- AC 110-220V, 50/60 Hz
- DC lithium battery 7.4V, 3500 mAh

Fuse
- 2 pcs Ø5×20mm AC time lag; T250mA/250V (Power supply:220V)

Form
- Dimensions: 315 x 215 x 77 mm
- Weight: 1.7kg

- BD/RDM: 1831650
- CND: Z12050301
- Paraf: 977813649
- ean13: 8023279332223
- UMDNS: 11407

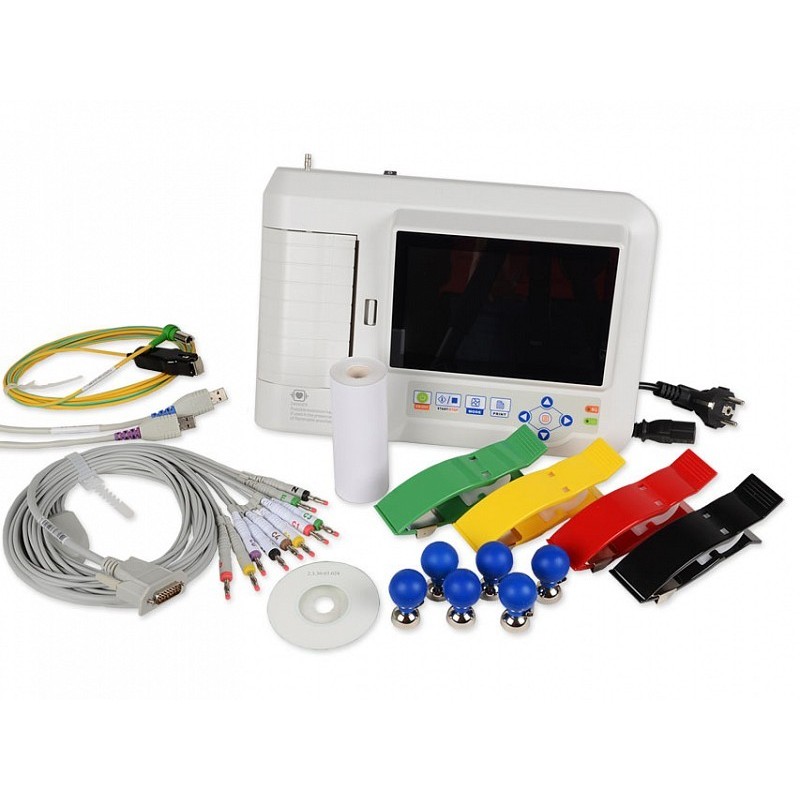

Equipment:
- ECG cable

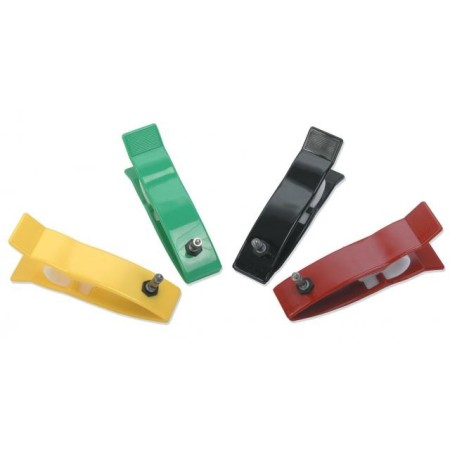

- 1 set of peripheral clamp electrodes

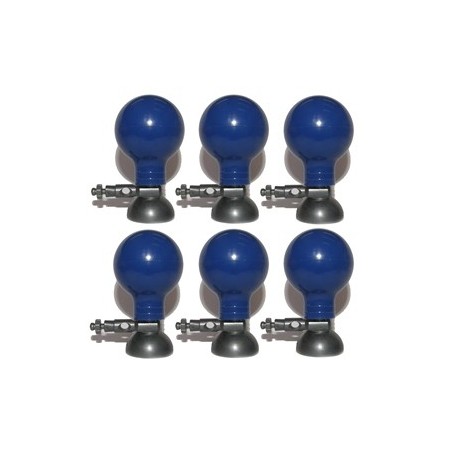

- 1 set of precordial electrodes
- Earth cable
- Alimentation cable
- Toilet paper
- USB connection and PC software
